Serial console for QNAP TS-11x/TS-12x

If you want to connect a serial console to a QNAP TS-11x/TS-12x device, you'll need a 3.3V TTL to RS-232 level shifter. The serial connector is of type JST PHR-4 and the wires need to be crimped into a JST SPH-002T-P0.5S connector pin before it can be fitted inside the JST PHR-4 connector. The layout is as follows from right (1) to left (4):

  1. TX (red)
  2. VCC (green)
  3. RX (black)
  4. GND (white)

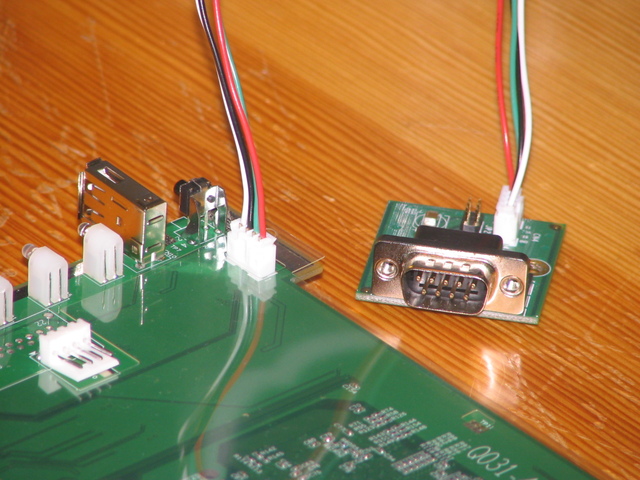

TS-219 and serial console

Once you have connected your serial console, you can use a terminal emulation program to connect to U-Boot, the boot loader used by this device. You have to connect with 115200 baud and set the parameters to 8N1 (8 data bits, no parity, 1 stop bit). U-Boot on a separate page about U-Boot.

If your serial console doesn't work or you can see text but your typing is ignored, it might be because you have to connect RX from your connector cable to TX on the QNAP and TX with RX.
